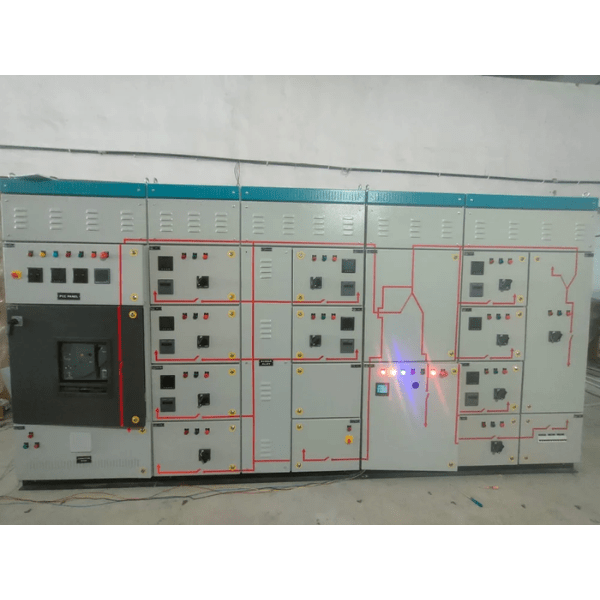

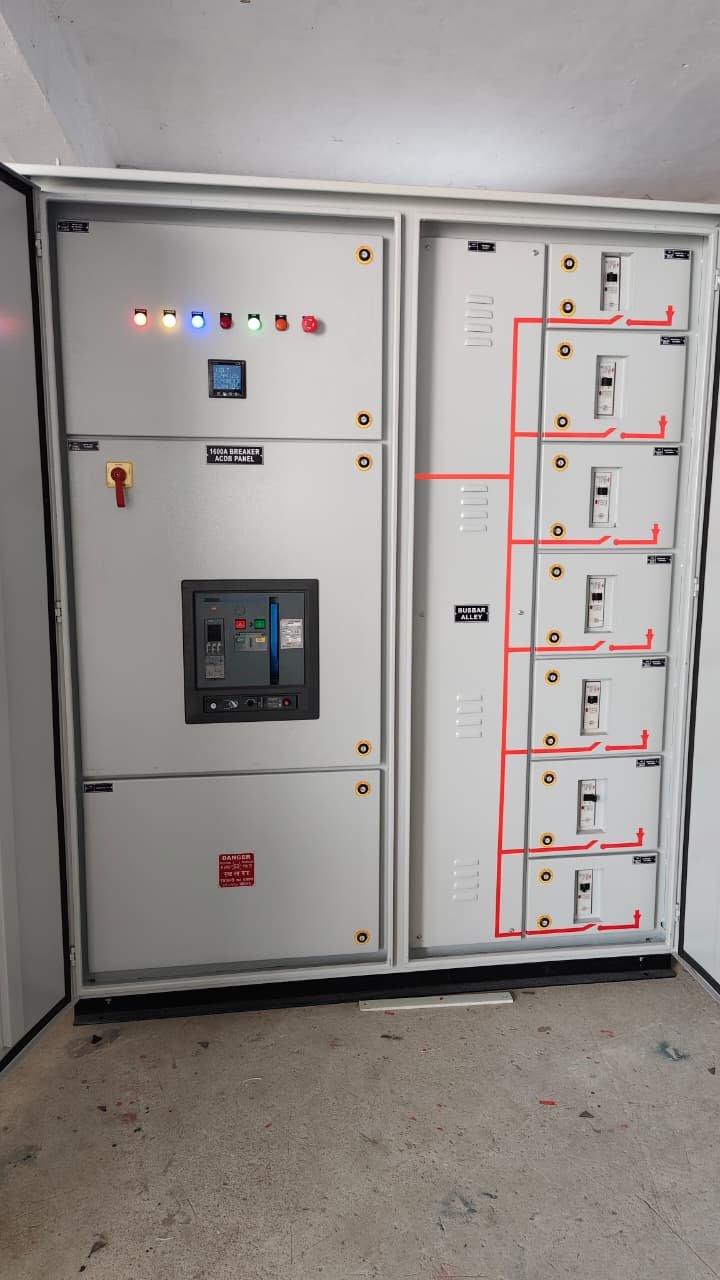

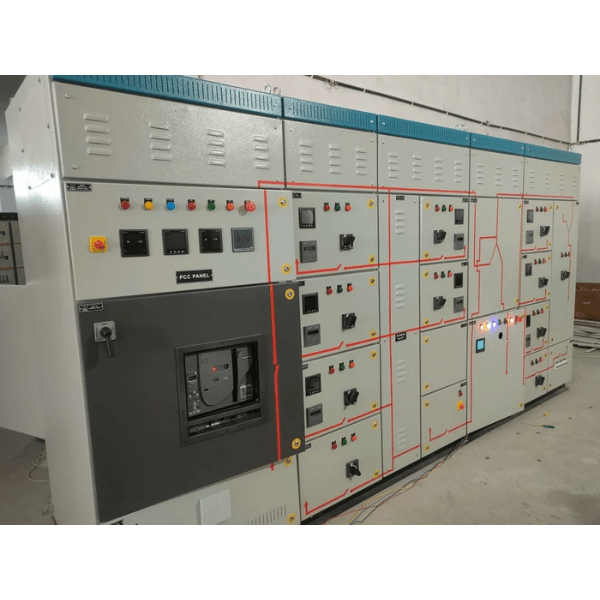

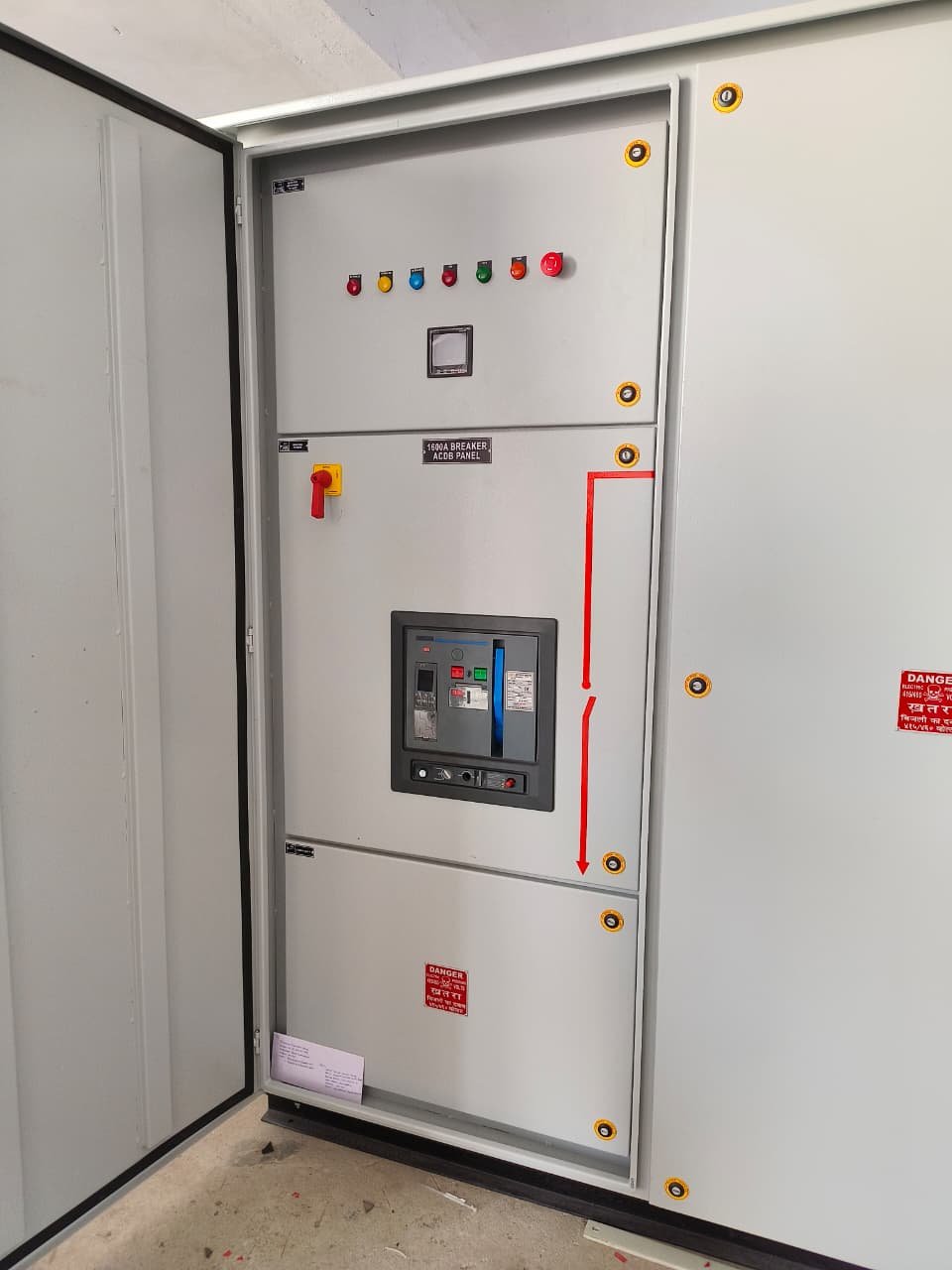

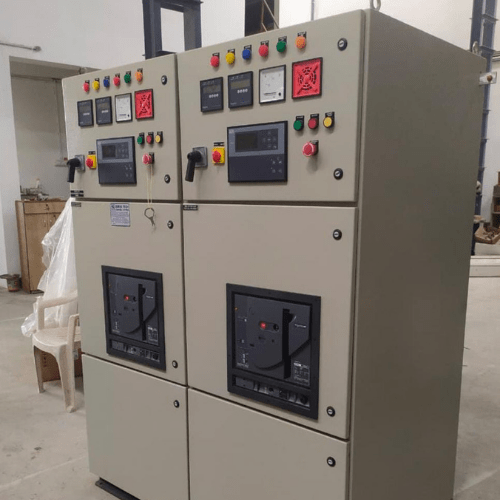

ACB PANEL MANUFACTURER
ACB PANEL MANUFACTURER
| Parameter | Technical Details |
|---|---|
| Rated Current (In) | 400A – 6300A (customizable) |
| Rated Voltage | 440V AC / 690V AC |
| Frequency | 50Hz / 60Hz |
| Breaking Capacity | 50kA / 65kA / 75kA (as per requirement) |
| Rated Insulation Voltage | 1000V |
| Phase | Three Phase |
| Protection Device | Air Circuit Breaker (ACB) |
| Type of ACB | Fixed / Draw-out Type |
| Enclosure Material | MS / CRCA Sheet / Powder-Coated |
| IP Protection Level | IP42 / IP54 / IP55 / IP65 (optional) |
| Control Type | Manual / Automatic / Remote |
| Busbar Material | Aluminium / Electrolytic Copper |
| Busbar Current Rating | 400A to 6000A |
| Metering | Digital Multifunction Meter (MFM) |
| Indications | RYB Indication Lamps, Trip/ON/OFF indication |
| Cooling | Air-cooled, natural ventilation |
| Operating Temperature | -5°C to 55°C |
| Standards Followed | IS/IEC 61439, IEC 60947-2 |
| Mounting Type | Floor Mounted |
| Minimum Order Quantity | 1 Piece |
What is an ACB Panel?
An ACB Panel is an essential power distribution panel equipped with Air Circuit Breakers designed to protect electrical systems from severe faults. It manages high-capacity electrical loads and ensures safe, stable, and efficient power distribution across industries.
Key Features of Our ACB Panels :
High interrupting capacity for maximum safety
Overload, short-circuit & earth fault protection
Strong MS/SS powder-coated enclosure
Fully automatic, manual, or remote-operated options
Advanced metering, monitoring & protection systems
High mechanical & thermal durability
Compliance with industry standards and safety norms
Custom-built as per application requirements
Why Choose Relief Power Control Panel?
Experienced manufacturer with proven quality
Premium materials and components
Customized solutions for all industrial needs
Tested for safety, reliability & performance
Strong after-sales and technical support
